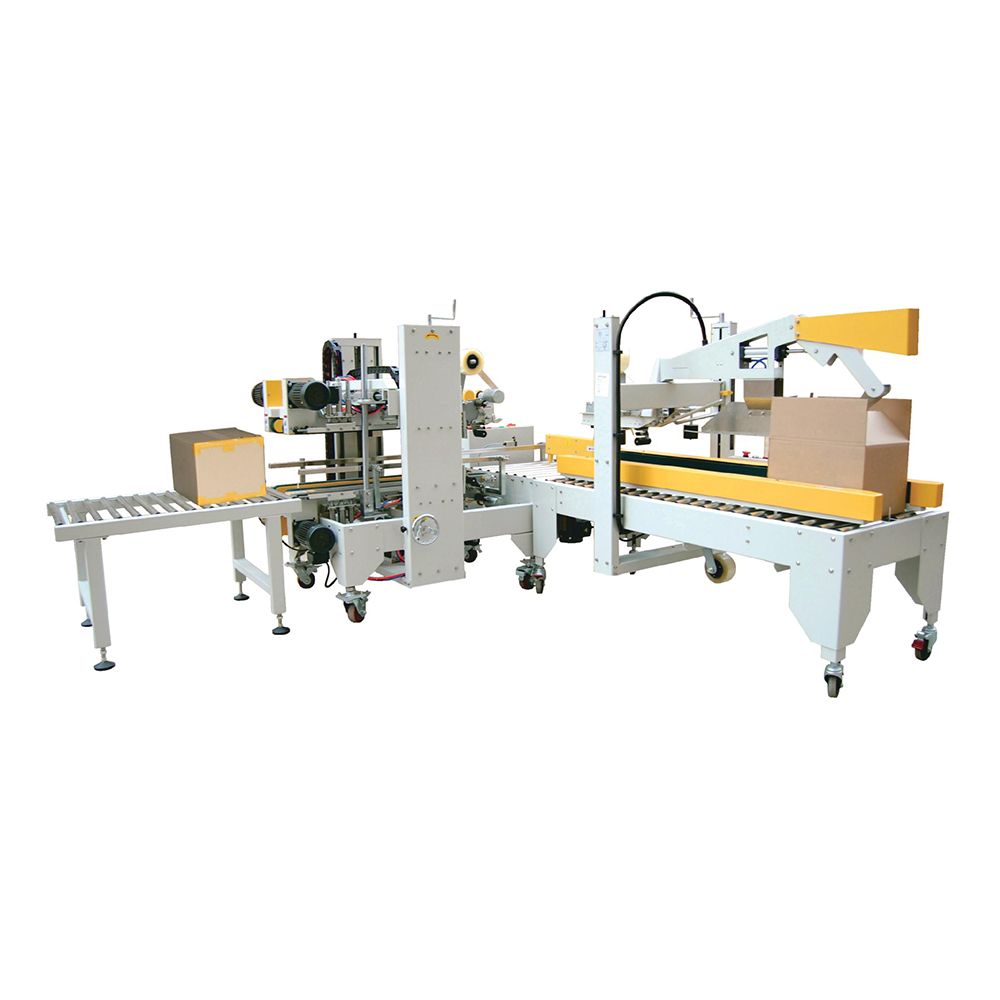

I-Shapedautomatic Cover Folding And Sealing Machine

Detailed introduction


● The automatic cover folding and sealing machine is connected with the corner and edge sealing machine to form an H-shaped sealing machine.

● Machine width and height can be adjusted according to carton specifications. The machine can seal cartons of the same type at the same time.

● After the sealing, the carton looks eye-pleasing. Besides, the sealing is quick and saves labor force.

● The machine design boasts operation simplicity, cost effectiveness, durability, safety, and low faul rate.

Carton dimensions:：L320-500×W200-500×H180-500mm

Table height：600mm The height can be adjusted according to customer requirements

Sealing speed：480-600 carton/hour

Machine dimensions：L2900×W1900×H1580mm

Power：220/380V 1∮-3∮ 50-60Hz

Air pressure：6kg/cm³

Tape：W48mm、60mm、75mm×L1000yard

Net weight of machine：680kg

自动折盖工字型封箱机
