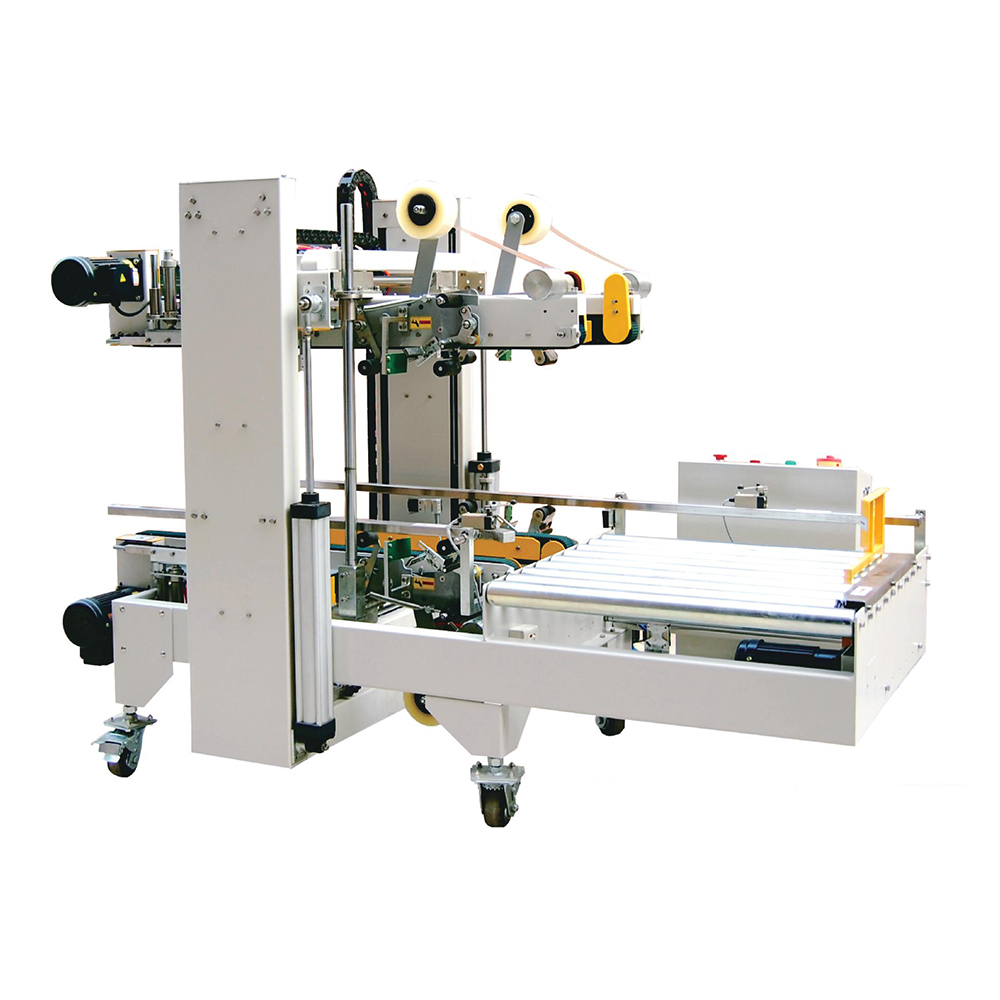

Fully Automatic Corner And Edge Sealing Machine

  • category:Unpacking machine / sealing machine

  • hit count:
  • Release date:2018/12/13
  • Online Inquiry
Detailed introduction



● The machine design boasts operation simplicity, cost effectiveness, durability, safety, and low fault rate.

● Machine width and height can be adjusted according to carton specifications. The machine can seal cartons of the same type at the same time.

● After the middle, upper and lower openings of the carton are sealed by the front section sealing machine, the carton enters the 90°structure.

● The carton is pushed by the pushing board into the sealing structure. After the machine detects the carton based on photoelectric detection, the machine automatically adjusts its width and height according to the carton specifications, and seals and smoothes the four cormers and edges of the carton at the same time.

● After the sealing, the carton looks eye-pleasing. Besides, the sealing is quick and saves labor force.

● The machine is installed with a blade protection device to avoid stabbing during operation.

● The machine can be connected with the DPE or DPI model to complete an H-shaped carton sealing.


Carton dimensions:L320-500mm ×W200-500×H180-500mm

Sealing speed:300-360 carton/hour

Machine dimensions:L2100×W1200×H1580mm

Power:220/380V 1∮-3∮50/60Hz

Table height:600mm The height can be adjusted according to customer requirements

Air pressure:6kg/cm³

Tape:W48mm-60mm-75mm×L1000yard

Net weight of machine:450kg
