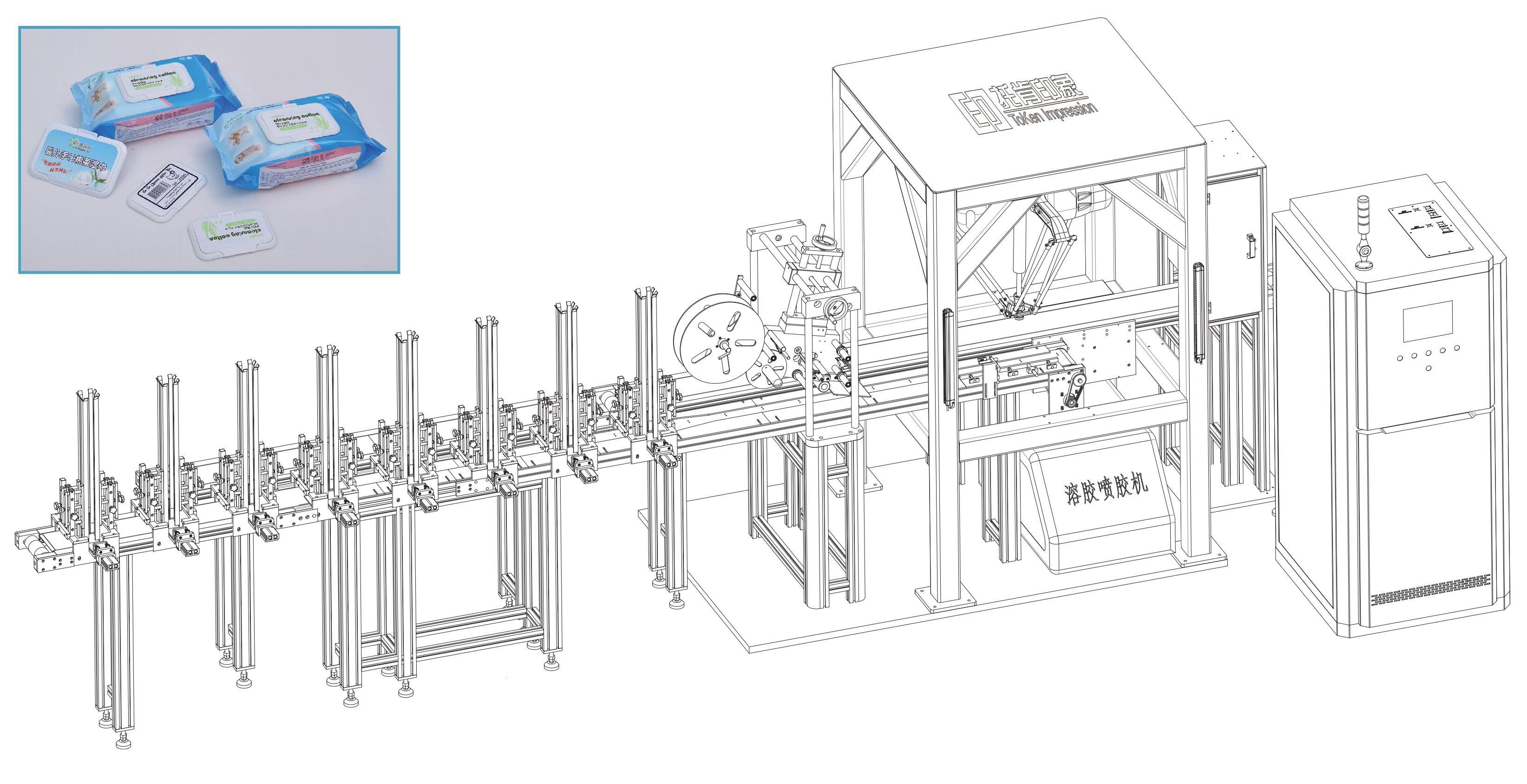

The machine applies to automatic labeling,gluing,and sticking of plastic labels to draw-type wet wipes.

Applicable labels are sticker labels used by rolling machines.

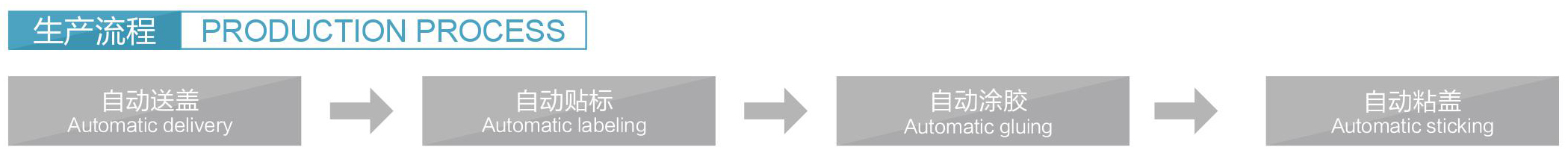

● Automatically labeling upon detection of a product.

● Automatic spraying or coating of glue.

● Automatically sticking to bags.

● Power for head labeling: advanced stepping servo motor.

● Power for the sticking robot: advanced servo motor.

● Advan photoelectric eye made by Japanese or German enterprises.

● Control: imported PLC and man machine interface.

● Adjustable label and sticker position: front,rear.left,right,up,and down.

Paper roll diameters: Inner diameterc76mm, and outer diameter less thanΦ360mm

Air source: 6kg/cm³

Label specifications: Bottom paper width 20-130mm

Labeling speed: 0-50 stickers/min

Labeling precision: ±1mm(except for errors of the products and labels）

Power：5KW,220V,50Hz
