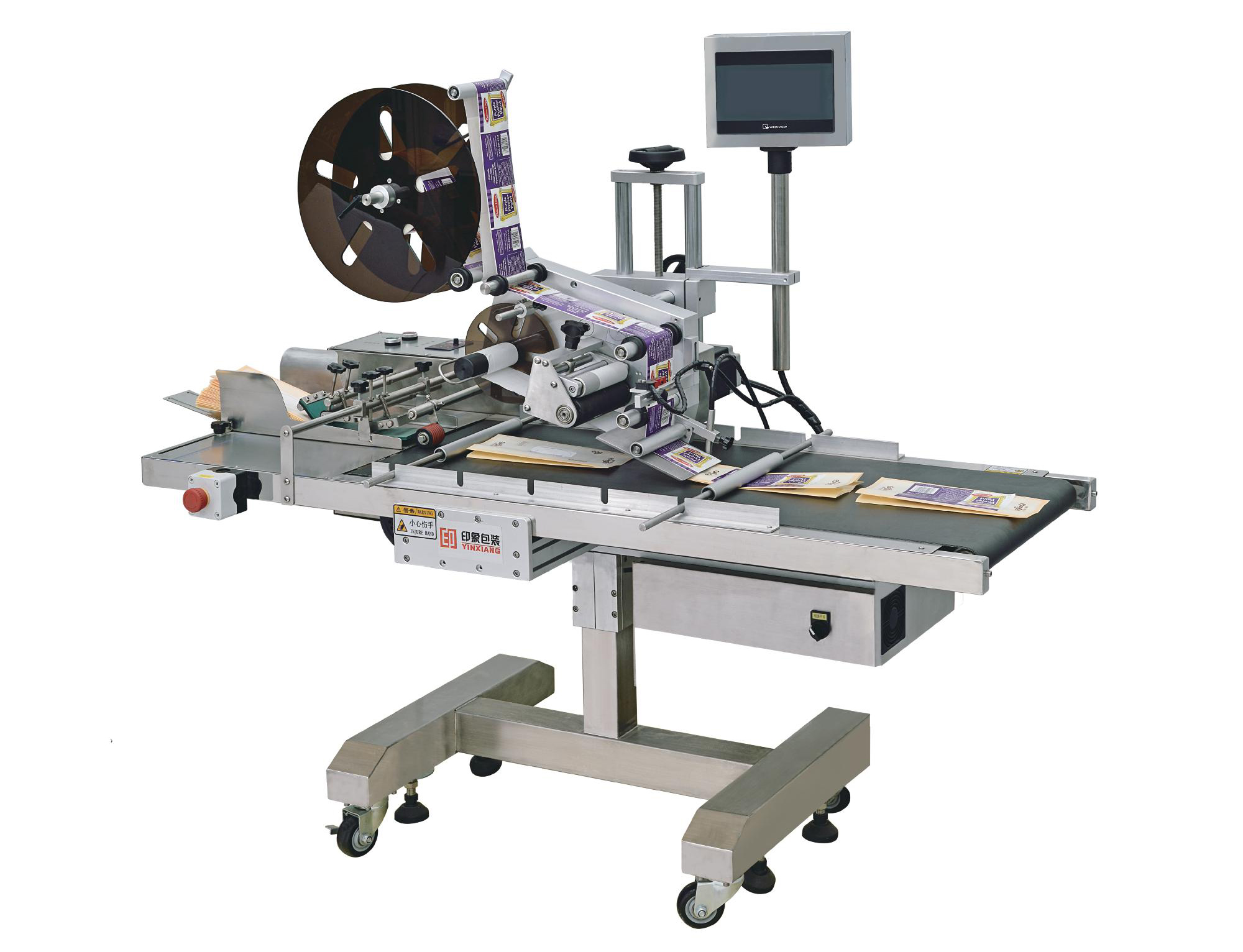

The machine applies to top labeling of plane products such as unshaped cartons, plastic bags, and paper cards.

Applicable labels are sticker labels used by rolling machines.

● In support of paging piled products and separating them based on speed diference after they are placed manually onto the entrance of the paging machine.

● Thickness of products that can be paged: 0.2-5mm.

● Width of products that can be paged: 70-400mm (width can be adjusted according to customer requirements).

● Length of products that can be paged: 70-600mm.

● Entrance of paging structure: holding up to 100mm height once.

● Material collection and piling mode: dropping.

● Paging speed: 0-30m/min.

● Power for labeling: advanced stepping servo motor.

● Advanced photoelectric eye made by Japanese or German enterprises.

● Control: PLC and man machine interface.

● Adjustable labeling position: front, rear, up, or down.

● Inner diameter of paper roll Φ76mm; outer diameter Φ360mm.

● Label specifications: bottom paper width 20-130mm (width can be adjusted according to customer requirements).

● Labeling speed: O-30m/min (actual speed is subject to the size of the carton).
