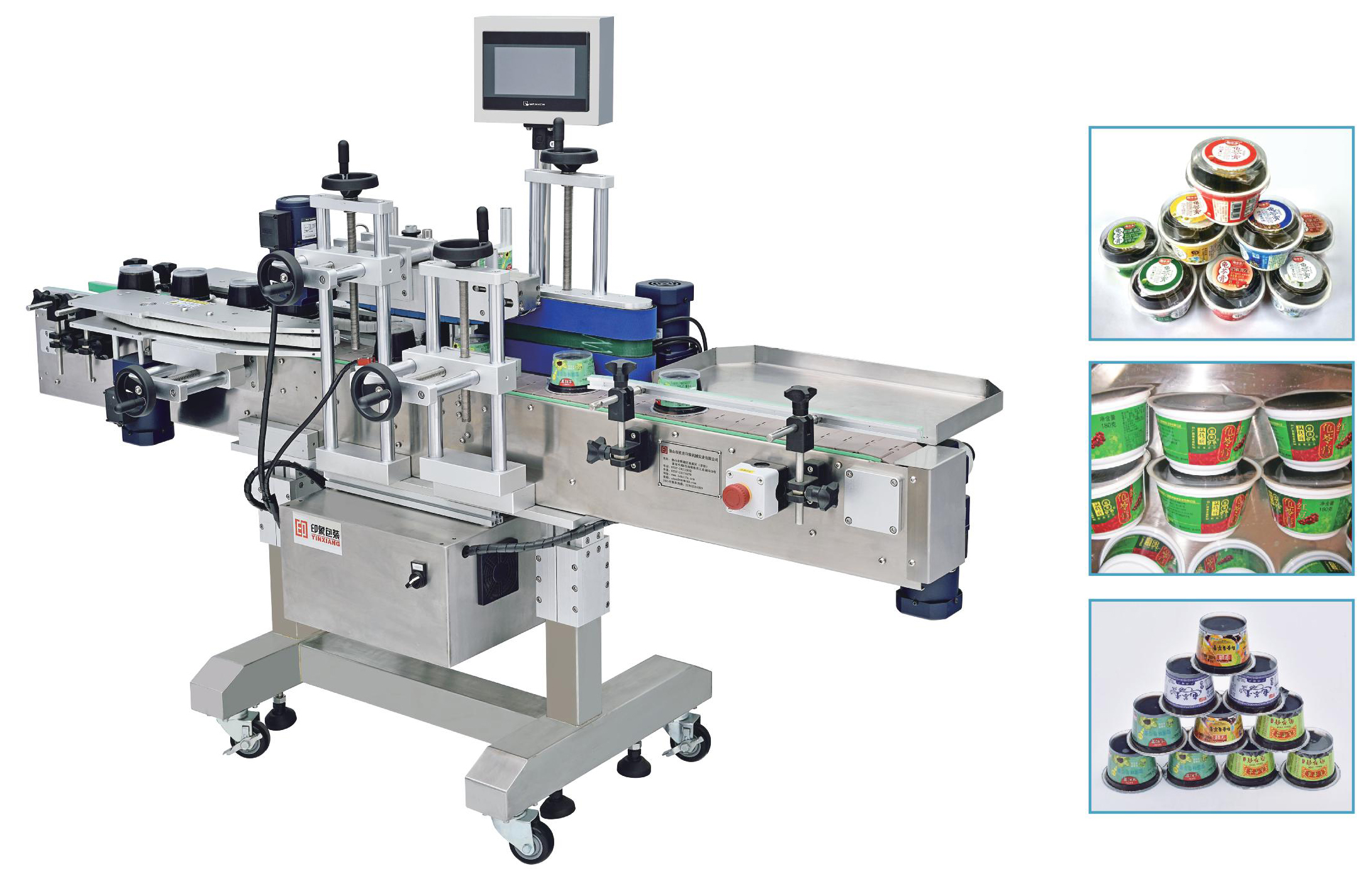

The machine applies to labeling of conic products.

● Machine materials: S304 stainless steel and anodized advanced aluminum alloy.

● Power for labeling: advanced stepping servo motor.

● Advanced photoelectric eye made by Japanese or German enterprises.

● Control:PLC and man machine interface.

● Adjustable labeling position:up or down；angle adjustable.

● Inner diameter of paper roll：Φ76mm；outer diameter Φ360mm.

● Conveying machine chain board width：101.6mm（width can be adjusted according to customer requirements）.

● Bottle diameter：Φ20~110mm（diameter can be adjusted according to customer requirements）.

● Label specifications:bottom paper width 20~130mm（width can be adjusted according to customer requirements）.

● Labeling precision：±1mm（except for errors of the products and labels）

Labeling speed：0-25m/min

Power：600W，AC220V/50Hz or 110V/60Hz

Net weight of machine：160kg

Boxing weight：260kg

Machine dimensions: L2100mm×W1000mm×H1300mm

Boxing dimensions: L2200mm×W1100mm×H1500mm
