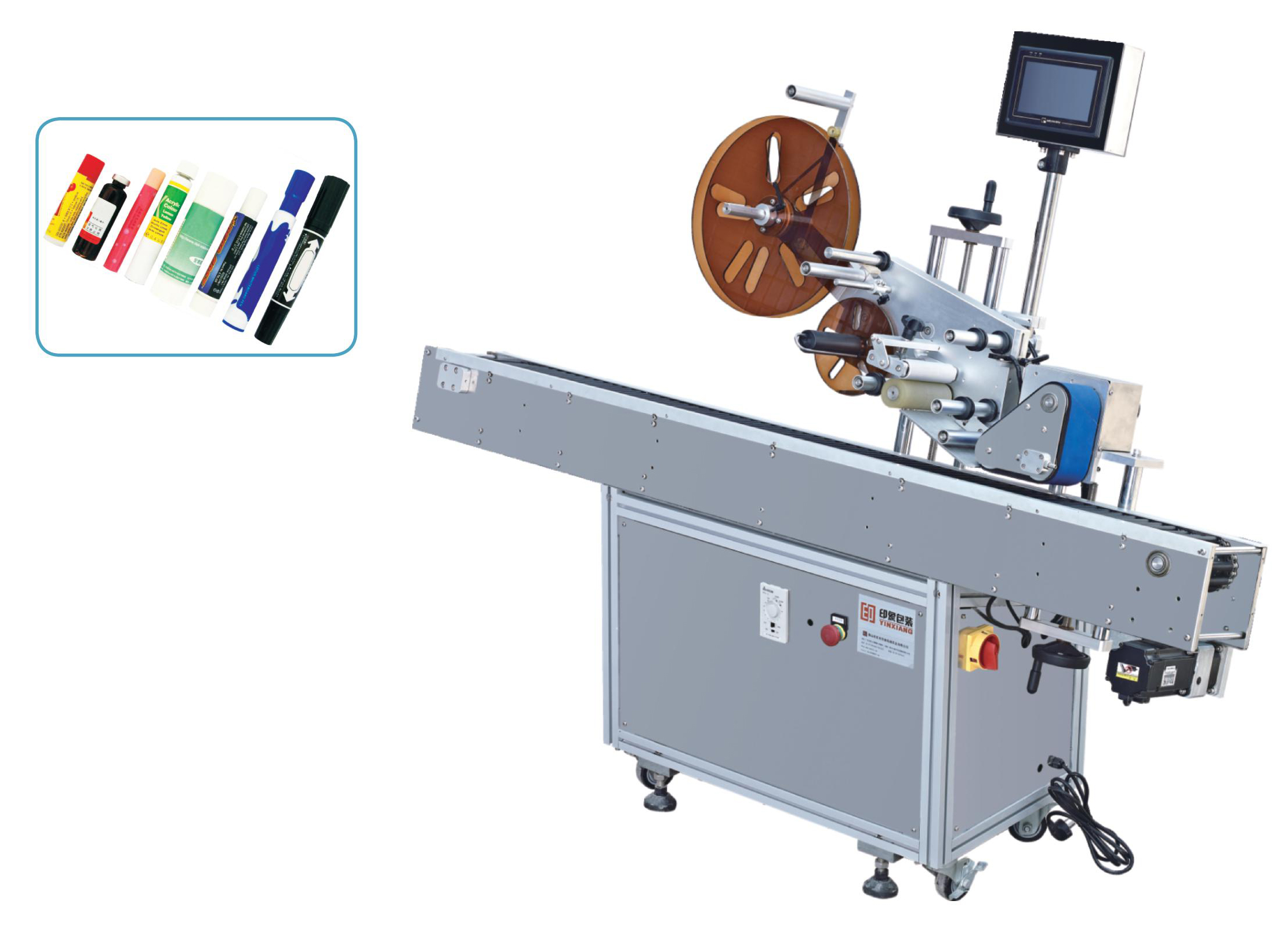

The machine applies to dual-label lateral labeling of irregular or regular products，or single-side lateral labeling.

Applicable labels are sticker labels used by rollng machines.The machine is widely applied in labeling of petrochemicalproducts such as oil，lubricant，and glue and daily products such as laundry detergent，shampoo，and food.

● Machine materials: S304 stainless steel and anodized advanced aluminum alloy.

● Power for labeling: advanced stepping servo motor.

● Advanced photoelectric eye made by Japanese or German enterprises.

● Control:PLC and man machine interface.

● Adjustable labeling position:front，rear，up，or down.

● Inner diameter of paper roll:Φ76mm；outer diameter Φ360mm.

● Label specifications:botom paper width 10~130mm（width can be adjusted according to customer requirements）.

● Product diameter 11~110mm（diameter can be adjusted according to customer requirements）.

● Labeling precision ±1mm（except for errors of the products and labels）

Labeling speed：0-25m/min

Power：500W，AC220V/50Hz or 110V/60Hz

Net weight of machine：200kg

Boxing weight：300kg

Machine dimensions：1500mm×700mm×1400mm

Boxing dimensions：1600mm×800mm×1600mm
