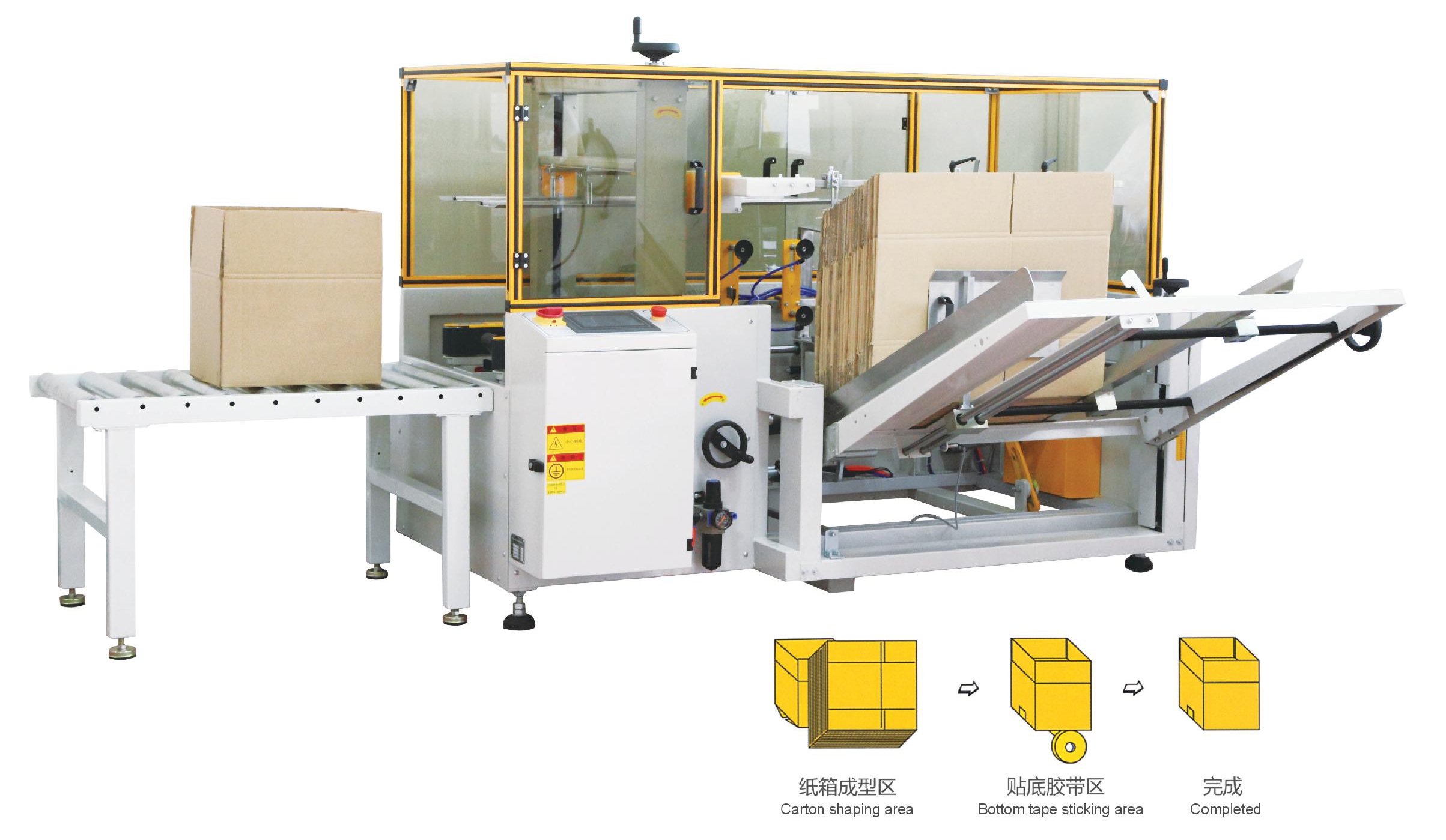

● The machine is manufactured using international advanced technologies. Parts, electric elements, and pneumatic elements are imported.

● The machine adopts vertical carton paper storage mode, so carton paper can be fed at random without machine stop.

● The machine can pack and use carton paper of the same type concurrently. To change the carton paper specifications, manually make adjustment. The adjustment takes about one to two minutes.

● The machine boasts rationalized design and concurrent shaping. Both the fold bottom and sealing bottom are shaped at one time.

● The machine is compact in volume, and its parts are precise and durable. It runs stably without vibration. The machine has long service life and high running efficiency.

● The machine is installed with a plexiglass protection cap to avoid operation accident.

● The machine can be operated independently or work with an automatic packaging line.

Carton opening speed：12 carton/min

Carton inventory：100pcs（1000mm）

Power：220V 1Φ200W

Net weight of machine：450kg

Air pressure：6kg/cm³

Air consumption speed：450NL/min

Machine dimensions：L2000×W1900×H1450mm

Carton dimensions：L250-450 W150-400 H100-400mm

Tape size：48mm，60mm，75mm（the minimum specifications cannot be used at the same time）
