● The machine is manufactured using intermational advanced technologies. Parts, electric elements, and pneumatic elements are imported.

● Width and height can be manually adjusted according to carton specifications.

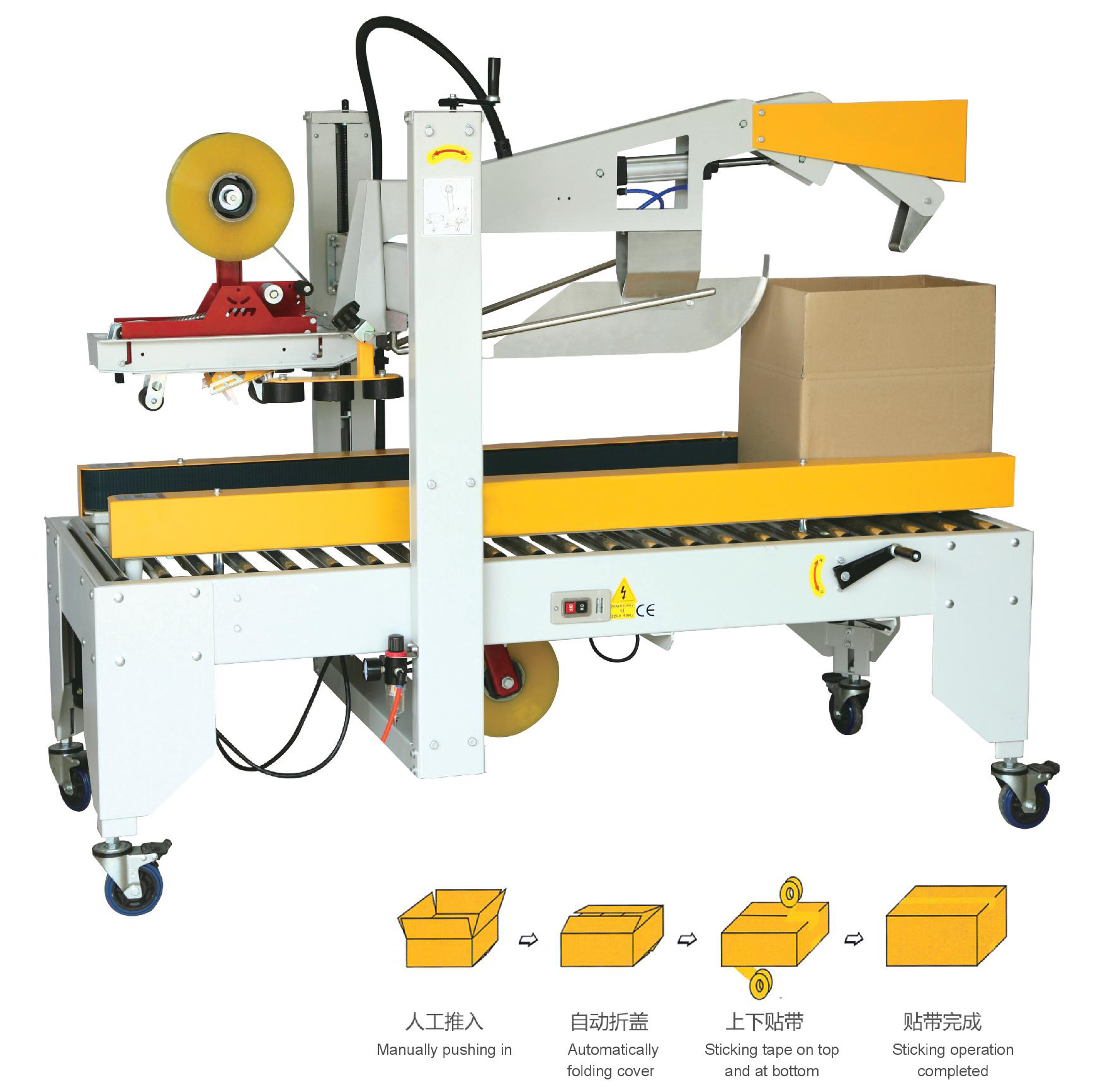

● The top cover of the carton is automatically folded and the top and boltom covers of the carton are automatically stuck with tapes in a quick, smooth and good-looking way.

● The machine is installed with a blade protection device to avoid stabbing during operation.

● The machine can be operated independently or work with an automatic packaging line.

Maximum packaging dimensions：L600×W500×H500mm

Minimum packaging dimensions：L200×W150×H150mm

Power：220/380V 1∮-3∮50Hz-60Hz

Air pressure：6kg/cm3

Power consumption：400W

Tape：W48mm，60mm，75mm

Machine dimensions：L1770×W850×H1520mm

Net weight of machine：250kg

Conveying speed：0-20m/min
