● The machine is manufactured using intermational advanced technologies.Parts, electric elements, and pneumatic elements are imported.

● Width and height can be manually adjusted according to carton specifications. The machine is used to package products of diferent specifications.

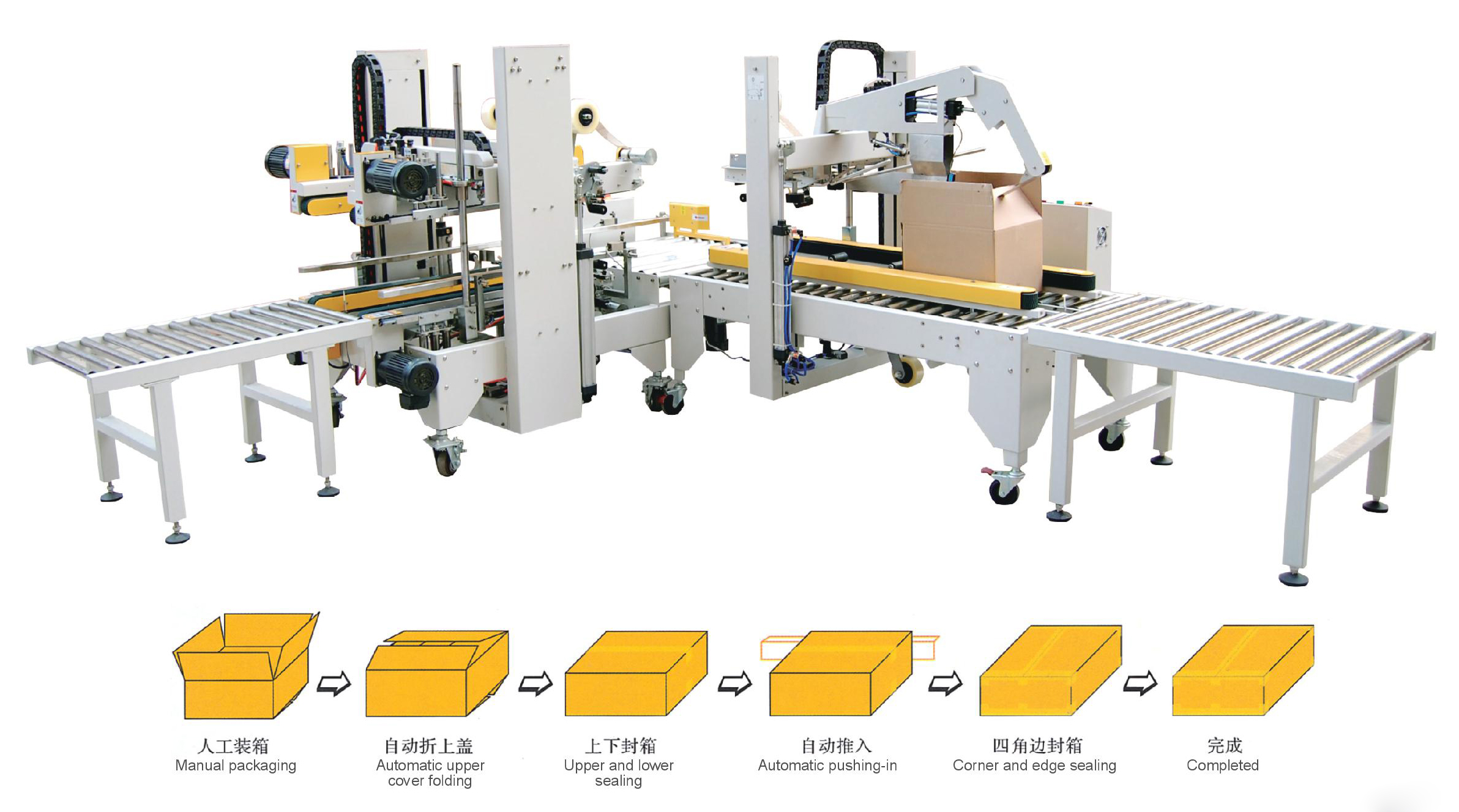

● The top cover of the carton is automatically folded and the top and bottom covers of the carton are automatically stuck with tapes in a quick, smooth and good-looking way.

● The machine is easy and convenient to operate and boasts high adaptability.

● The machine is installed with a blade protection device to avoid stabbing during operation.

● The machine can be operated independently or work with an automatic packaging line.

Carton dimensions：L320-500×W200-500×H180-500mm

Table height：600mm The height can be adjusted according to customer requirements

Sealing speed：300-360 carton/hour

Machine dimensions：L3000×W2100×H1580mm

Power：220/380V∮-3∮50-60Hz

Air pressure：6kg/cm³ 150NL/min

Tape：W48mm/60mm/75mm×L1000yard

Net weight of machine：730kg
