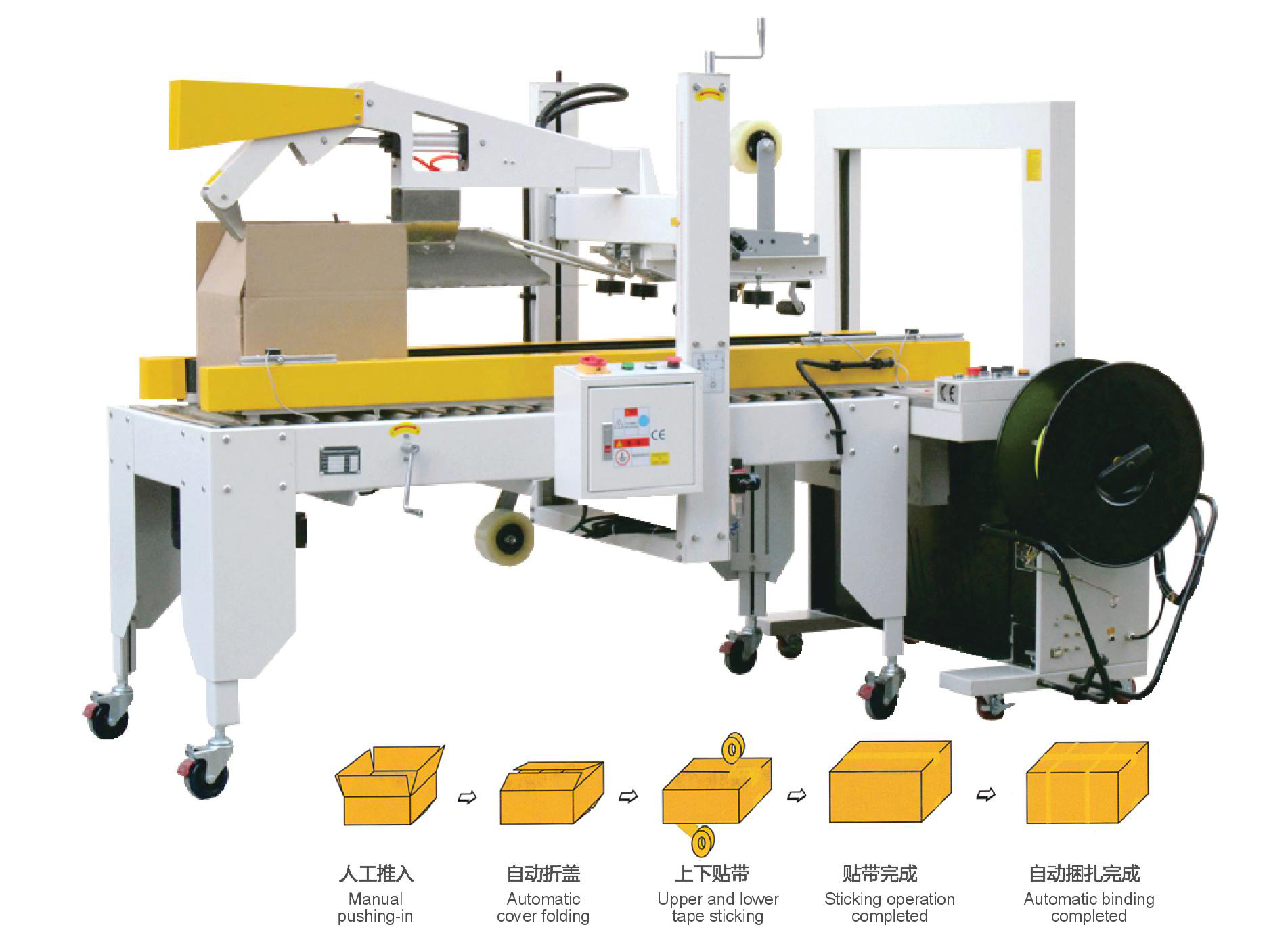

The automatic cover folding, sealing and packaging machine is a machine that integrates automatic sealing with automatic packaging functions. When the machine is connected to an automated packaging line, the machine can perform cover folding, upper and lower tape sticking, and multiple lane binding, implementing unmanned packaging. Characterized by high working efficiency, the machine is widely applied in fields such as toy, household appliance, print, electronics, and daily goods for batch production.

● Both sealing and packaging are performed concurrently, which increases speed and efficiency and reduces machine volume.

● Machine control is implemented based on the PLC, which reduces the operation complexity & inconvenience and fault rate.

● Carton position is automatically detected based on the imported photoelectric detector. Up to three lanes of cartons can be packaged at the same time.

● All actions are automatically completed, which achieves unmanned packaging.

Packaging speed：6 carton/min

Maximum packaging dimensions：L600×W500×H500mm

Minimum packaging dimensions：L200×W150×H150mm

Power：220/380V14-3450-60Hz

Power consumption：1200W

Air pressure：6kg/cm³

Tape：W48mm/60mm/75mm

Applicable PP belt：9,12,16×0.5-1.0mm

Machine dimensions：L2460×W1420×H1650mm

Net weight of machine：500kg
